We Know Boiler Heating Systems

The Royall wood boiler is built for homeowners and commercial building owners who want dependable performance, lower heating costs, and the peace of mind that comes from owning a boiler designed to last for years

A Royall wood boiler is designed with one goal in mind: delivering dependable wood heat when your family needs it the most. While fuel prices continue to rise, you can take control of your own heating costs by using one of America's oldest and most trusted energy sources, firewood.



Long lasting, high efficiency wood furnaces

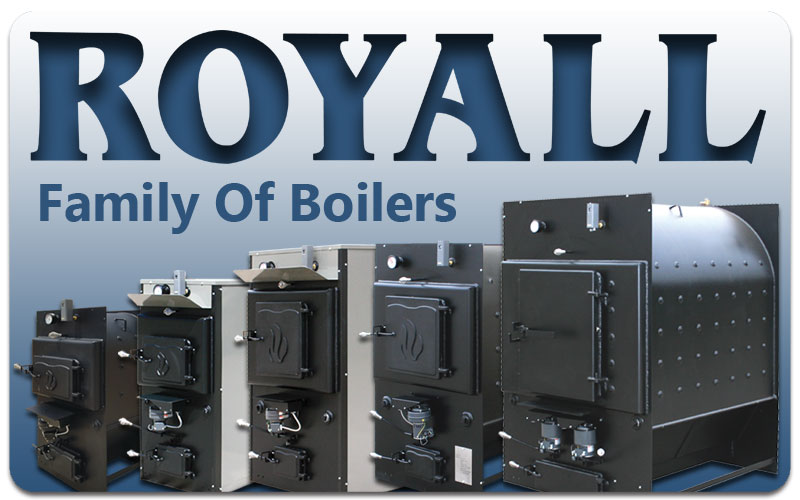

Royall Wood Boiler Systems

Providing Traditional Wood Boiler Reliability With The Cost Savings Homeowners Demand


6100 Wood Boiler

90,000 btu

• 51" x 26" x 28" (HxWxD)
• 41.25" Flue Center To Ground
• 1/4" and 5/16" Steel Construction
• Quality Powder Coated Finish
• (2) Cast Iron Stationary Grates
• 50 cfm Forced Draft Fan
• Auto Damper Shutoff
• 4.75 Cu ft Firebox Capacity
• 28 Gallon Water Capacity
• 10" x 14" Fuel Door
• 5" x 7" Ash Removal Door
• 20" Log Length
• (8) 9"x4.5"x1.25" Firebricks
• 6" Flue
• 1-1/4" FNPT Connections
• 530 lbs (approximate)
Download the 6100 Specification Sheet

More information about the 6100 Boiler
Purchase the 6100 Wood Boiler

6130 Wood Boiler

130,000 btu

• 44" x 24" x 38.5" (HxWxD)
• 41.25" Flue Center To Ground
• 1/4" and 5/16" Steel Construction
• Quality Powder Coated Finish
• (4) Rocker Grate System
• 50 cfm Forced Draft Fan
• Auto Damper Shutoff
• 6.25 Cu ft Firebox Capacity
• 26 Gallon Water Capacity
• 10" x 14" Fuel Door
• 5" x 7" Ash Removal Door
• 26" Log Length
• (8) 9"x4.5"x1.25" Firebricks
• 6" Flue
• 1-1/4" FNPT Connections
• 780 lbs (approximate)
Download the 6130 Specification Sheet

More information about the 6130 Boiler
Purchase the 6130 Wood Boiler

6150 Wood Boiler

150,000 btu

• 50" x 26" x 38" (HxWxD)
• 41.25" Flue Center To Ground
• 1/4" and 5/16" Steel Construction
• Quality Powder Coated Finish
• (4) Rocker Grate System
• 50 cfm Forced Draft Fan
• Auto Damper Shutoff
• 8.1 Cu ft Firebox Capacity
• 40 Gallon Water Capacity
• 10" x 14" Fuel Door
• 5" x 7" Ash Removal Door
• 26" Log Length
• (8) 9"x4.5"x1.25" Firebricks
• 6" Flue
• 1-1/4" FNPT Connections
• 1,204 lbs (approximate)
Download the 6150 Specification Sheet

More information about the 6150 Boiler
Purchase the 6150 Wood Boiler

6200 Wood Boiler

200,000 btu

• 59" x 34" x 38" (HxWxD)
• 48.75" Flue Center To Ground
• 1/4" and 5/16" Steel Construction
• Quality Powder Coated Finish
• (4) Rocker Grate System
• 50 cfm Forced Draft Fan
• Auto Damper Shutoff
• 13 Cu ft Firebox Capacity
• 73 Gallon Water Capacity
• 17" x 17" Fuel Door
• 5" x 7" Ash Removal Door
• 26" Log Length
• (8) 9"x4.5"x1.25" Firebricks
• 6" Flue
• 2" FNPT Connections
• 1,534 lbs (approximate)
Download the 6200 Specification Sheet

More information about the 6200 Boiler
Purchase the 6200 Wood Boiler

6300 Wood Boiler

300,000 btu

• 59" x 34" x 53" (HxWxD)
• 48.75" Flue Center To Ground
• 1/4" and 5/16" Steel Construction
• Quality Powder Coated Finish
• (8) Rocker Grate System
• 75 cfm Forced Draft Fan
• Auto Damper Shutoff
• 17.7 Cu ft Firebox Capacity
• 13 Gallon Water Capacity
• 17" x 17" Fuel Door
• 5" x 7" Ash Removal Door
• 43" Log Length
• (20) 9"x4.5"x1.25" Firebricks
• 6" Flue
• 2" FNPT Connections
• 1,824 lbs (approximate)
Download the 6300 Specification Sheet

More information about the 6300 Boiler
Purchase the 6300 Wood Boiler

6490 Wood Boiler

499,000 btu

• 74" x 50" x 65" (HxWxD)
• 59.75" Flue Center To Ground
• 1/4" and 5/16" Steel Construction
• Quality Powder Coated Finish
• (16) Rocker Grate System
• (2) 146 cfm Forced Draft Fans
• Auto Damper Shutoff
• 50 Cu ft Firebox Capacity
• 196 Gallon Water Capacity
• 29" x 25" Fuel Door
• 6" x 20" Ash Removal Door
• 56" Log Length
• (36) 9"x4.5"x1.25" Firebricks
• 8" Flue
• 2.5" FNPT Connections
• 2,600 lbs (approximate)
Download the 6490 Specification Sheet

More information about the 6490 Boiler
Purchase the 6490 Wood Boiler


Royall Boiler

With outputs of 90,000 to 499,000 btu a Royall boiler can help you heat your home or business to almost any temperature for a fraction of what you're heating costs are now.


It's important to choose a wood boiler that is correctly sized for your requirements. An undersized boiler needs to be fired more often, while an oversized boiler will be less efficient and can contribute to dangerous creosote buildup.



• Our wood boiler is quality backed with a (6) year limited warranty on materials and workmanship.

• Castings and electrical components are backed by their manufacturer warranties for (1) year from the installation date.

• No warranty is provided on Firebrick and gaskets.


A Royall wood boiler gives homeowners the freedom to heat their home with a dependable, renewable fuel source while reducing reliance on more expensive propane, fuel oil, or electric heat. With the flexibility to burn seasoned firewood, you can take control of your heating costs and protect yourself from unpredictable energy price increases. Whether you harvest your own wood or purchase it locally, a wood furnace provides an economical heating solution that can deliver reliable warmth throughout even the coldest winter months.

Built with durability and performance in mind, our wood boiler are engineered to provide years of dependable service. Heavy duty steel construction, quality craftsmanship, and efficient heat transfer work together to maximize every load of firewood. Designed for long burn times and consistent heat output, a Royall wood boiler requires fewer reloads while maintaining comfortable indoor temperatures, allowing you to spend less time tending the fire and more time enjoying your home.

Beyond the savings and reliability, a Royall wood boiler delivers the unmatched comfort of whole home heating. Unlike space heaters or fireplaces that only warm a single room, our furnaces distribute even, consistent heat through your home's existing ductwork, eliminating cold spots and creating a comfortable living environment from room to room. It's a heating solution that combines traditional wood-burning dependability with modern convenience, giving your family warmth, comfort, and peace of mind all winter long.
